This page is relevant to some institutions depending on their Identity Provider configuration and specific claims used in the authentication process. Please refer to EchoVideo: Configuring Auth0 Authentication for more information.
EchoVideo depends on 'email' as the unique identifier for user logins, however for Single Sign-On (SSO) institutions maybe dependent on a User Principal Name (UPN) or another claim to map user accounts in Identity Providers (IdP) with EchoVideo.
The primary lookup for SSO with EchoVideo is based on matching the attributed passed with the echo_identity claim and the ssoId values.
Configuring echo_identity
echo_identity is a custom claim configured as part of the Auth0 setup and can pass a string value that might take the form of an email or a username.
Populating ssoId
ssoId is a field associated with a user's account in EchoVideo that needs to be populated for the SSO authentication workflow.
Manual using the Users page
The 'SSO ID' field on the Edit User modal can be used. You can navigate to this under the Users page accessible by administrators EchoVideo: Editing Users.
- Go to Admin Dashboard > Users and search for a specific user
-

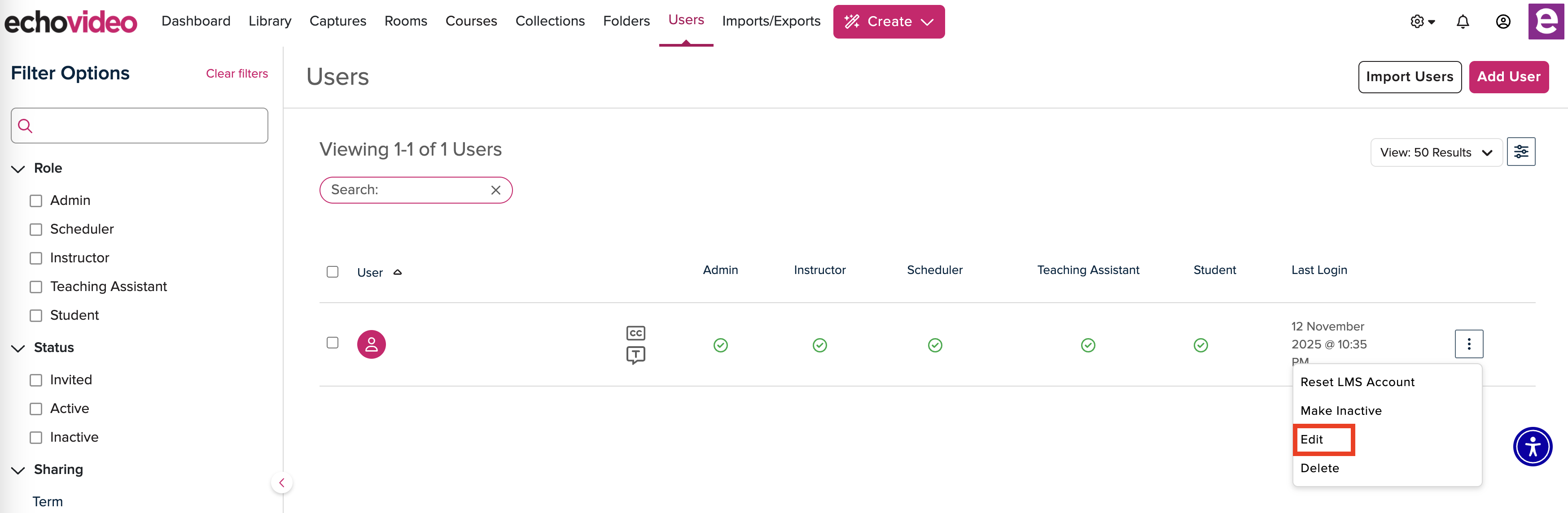

Click on 'Edit' under the three-vertical-dots on the right of the specific user in the Users table:

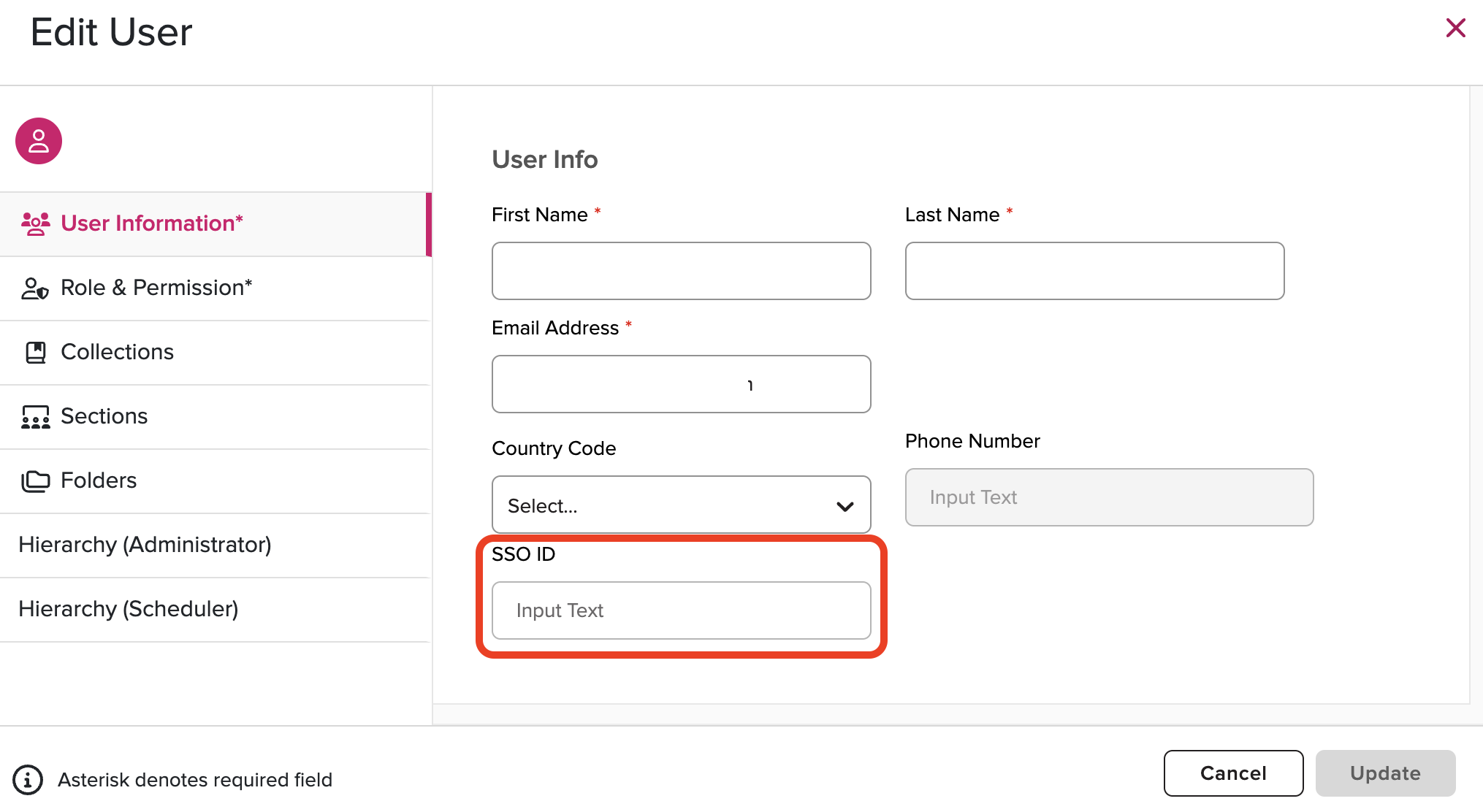

- The 'User Information' in the user's model will have an optional field called 'SSO ID'.
- Populate the 'SSO ID' field and click 'Update' to save the change.
Bulk Import
For large user bases, the Bulk CSV Import and Export tool is useful as new users can be created or existing users updated with an SSO ID.
New Users
- Go to Admin Dashboard > Imports/Exports > Imports and click on Imports
-

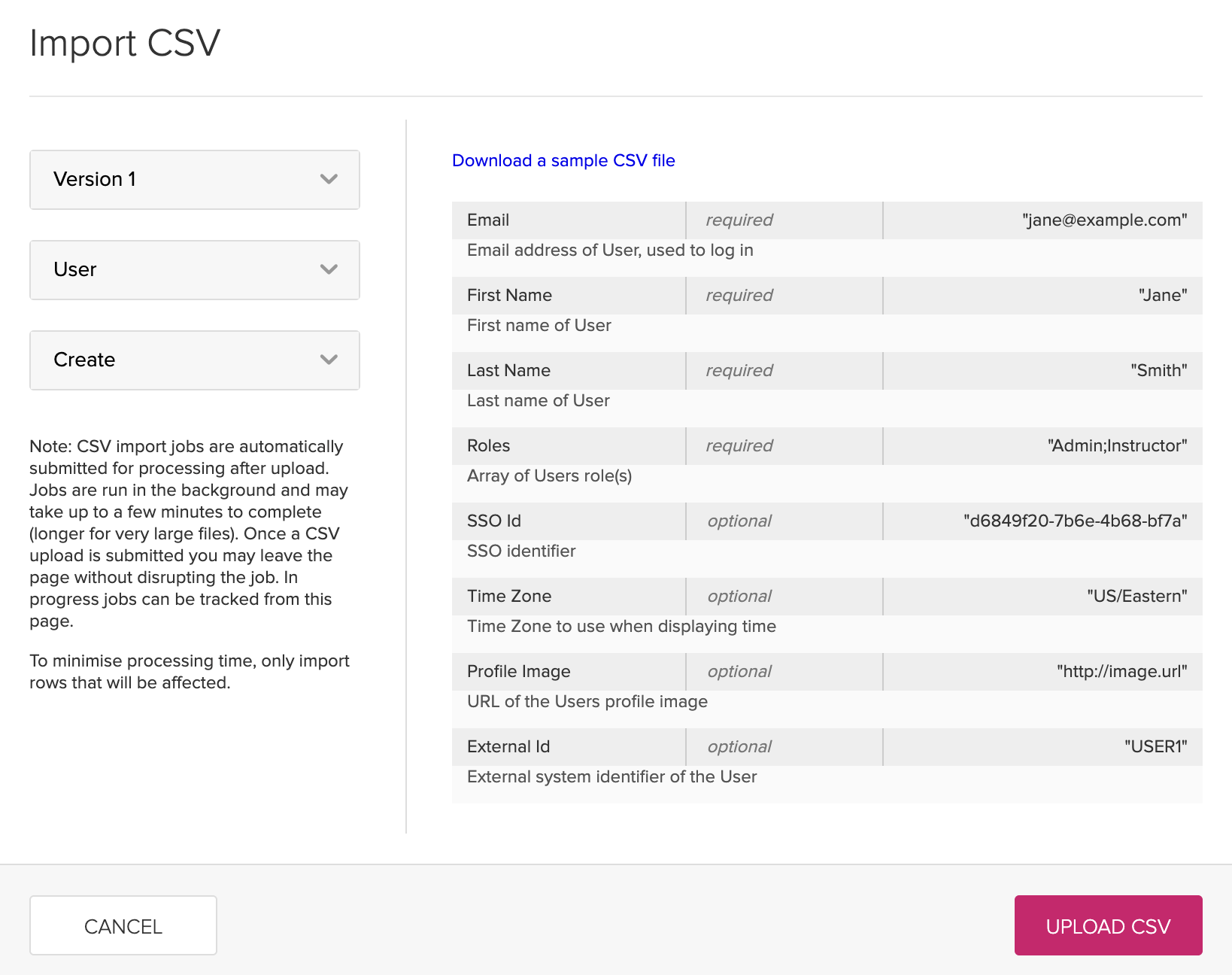

Select Version 1, User, and Create to display the see the fields required and optional for creating new users in bulk.
- Use the 'Download a sample CSV file' to retrieve a template CSV containing the relevant fields.
- For SSO ID, the field in the CSV labeled 'SSO Id' will need to be populated for relevant users.
- Once the CSV is completed, use the 'UPLOAD CSV' button on the 'Import CSV' modal to upload and initiate the bulk user creation.
Existing Users
- To retrieve existing users table for populating the 'SSO ID' field, go to Admin Dashboard > Imports/Exports > Exports
-

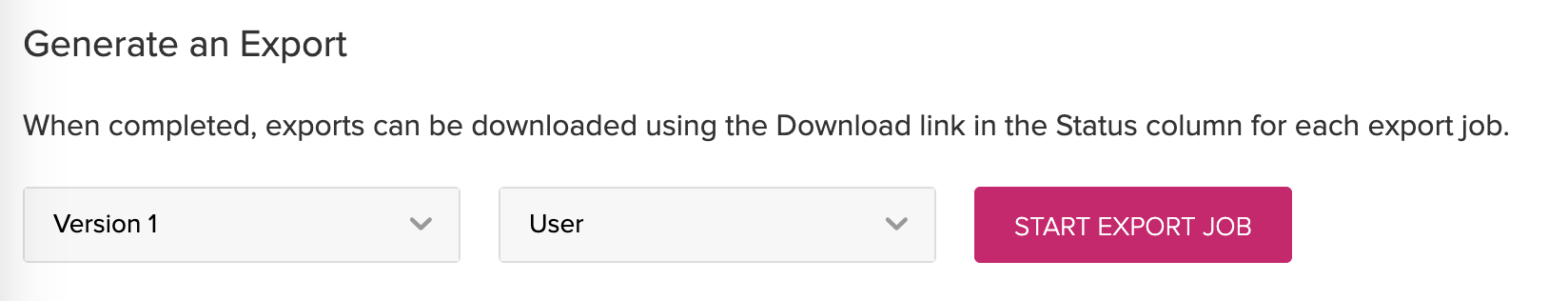

Select 'Version 1' and 'User' and click on 'START EXPORT JOB'.
- Once the job is completed, download the CSV containing existing users and the columns contained will be those required to construct the CSV required for importing to update existing users.
-

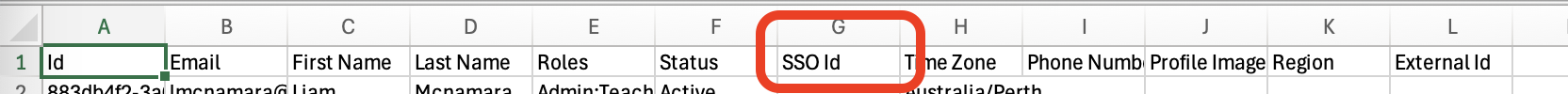

The CSV will include the column 'SSO Id', that can be populated.
- Once the 'SSO Id' column has been populated for the require users, go to Admin Dashboard > Imports/Exports > Imports and click on 'IMPORT CSV'.
-

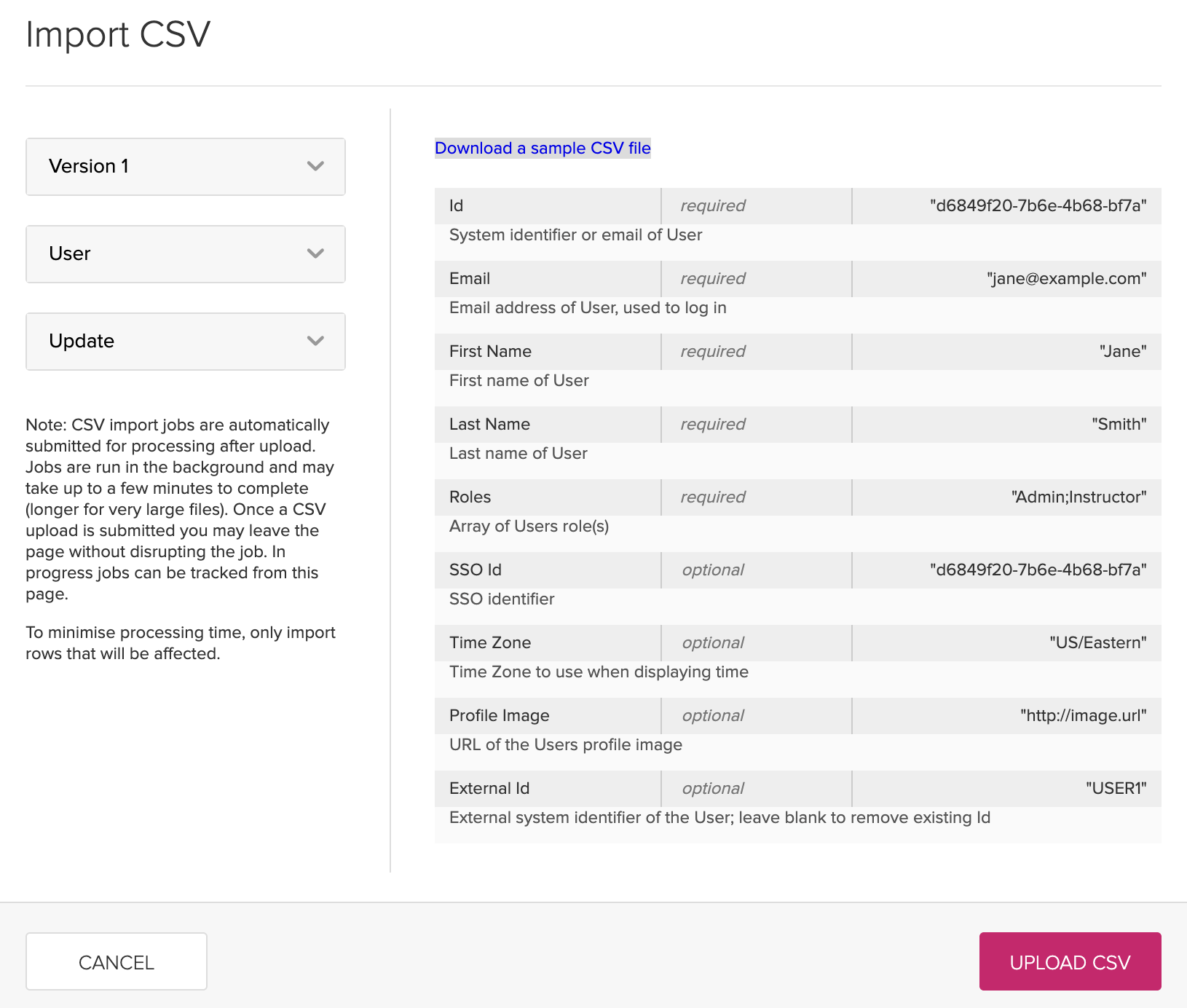

Select 'Version 1', 'User', and 'Update' in the modal.
- The columns contained in the exported CSV update with the 'SSO Id' can be used for the import csv by clicking the 'UPLOAD CSV'.
- Once the CSV is uploaded, this will trigger those existing user accounts to be updated with the specified 'SSO Id'.
- Validate these changes using the Admin Dashboard > Users to search for an updated user and validate the 'SSO ID' under the 'User Information' has changed.
Programmatically via API
REST API endpoints can be used to create and update users and the 'ssoId' field programmatically.
Swagger documentation for each region can be found: EchoVideo: Using Swagger Docs UI for API Calls
-
Creating users is a POST request to the users endpoint with the requisite request body show below that includes the ssoId field.
{ "email": "Foo.Bar@echo360.com", "timeZone": "US/Eastern", "firstName": "Foo", "lastName": "Bar", "phoneNumber": { "region": "United Kingdom", "number": "999-999-9999, 123456789012345" }, "profileImageUrl": "string", "roles": [ "string" ], "ssoId": "fbar+internet2.edu@subdomain.incommon.org", "externalId": "Foo.Bar@echo360.com" } -
Updating a user's account is a PUT request to the users endpoint and specifying the ssoId field in the request body.
{ ... "ssoId": "fbar+internet2.edu@subdomain.incommon.org", ... }
