LTI 1.1 integrations between EchoVideo and Canvas use a Consumer Key and Shared Secret to securely authenticate communication between the two platforms. In some cases, administrators may need to rotate these credentials as part of routine security maintenance, compliance requirements, administrative changes, or to address a suspected credential exposure. Because regenerating credentials in EchoVideo immediately invalidates the existing values, administrators should be prepared to update the Canvas configuration immediately to avoid interruptions in access to EchoVideo content and tools within Canvas.

Regenerating the LTI 1.1 key and secret in EchoVideo immediately invalidates the existing credentials. To avoid disruption for instructors and students, update the Canvas configuration as soon as the new credentials are generated.

Before you begin, ensure you have:

• Institution Administrator access in EchoVideo.
• Administrator access in Canvas.
• Access to the existing EchoVideo LTI 1.1 app configuration in Canvas.

Rotate the LTI 1.1 Credentials in EchoVideo

1. Log in to EchoVideo as an administrator.
2. Click the Settings icon in the upper-right corner of the screen.

3. From the Settings menu, select Institution Settings.

   General settings appear and Basic Info is selected by default.

4. Click Integration.
5. Choose LMS / VLE from the middle panel.
6. Select the LTI 1.1 tab.
7. Locate the existing Canvas LTI 1.1 integration and click the chevron to expand the integration details.

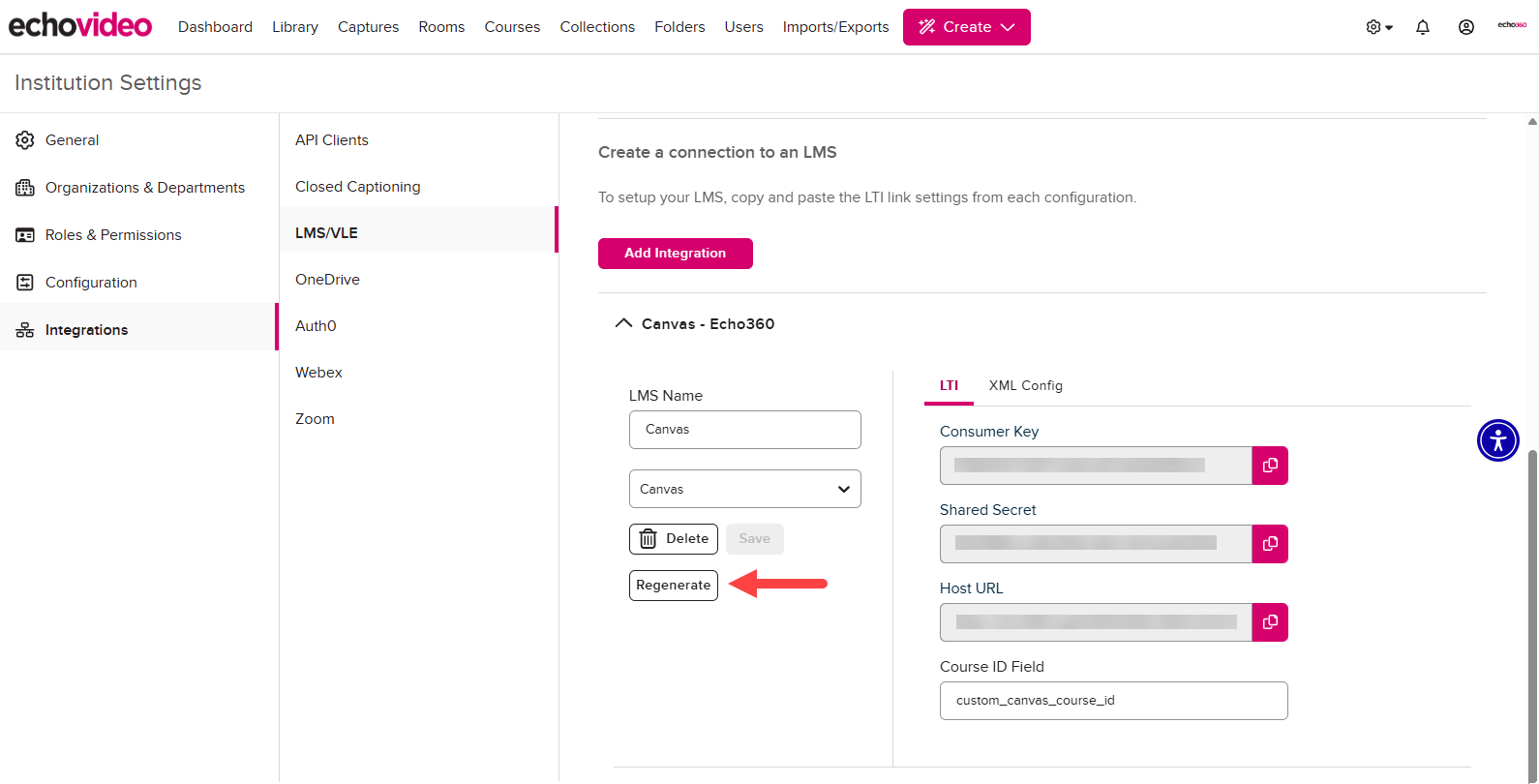

8. Click Regenerate as shown in the figure below.



   A warning message appears indicating the current integration will stop working until the new credentials are updated in Canvas.

9. Click OK to continue.
10. Copy the newly generated Consumer Key and Shared Secret and store them securely. You will need these values when updating Canvas.

Update the LTI 1.1 Credentials in Canvas

1. Log in to Canvas as an Administrator.
2. Navigate to Admin > Settings > Apps > View App Configurations.
3. Locate the EchoVideo app configuration.

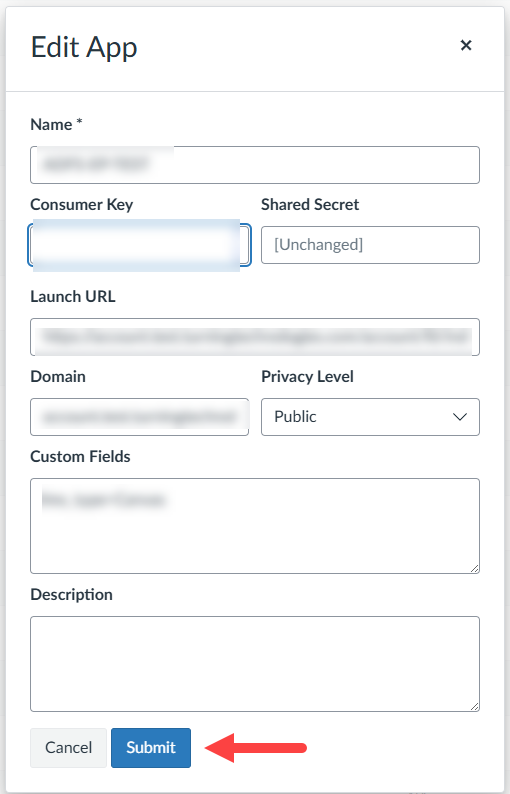

4. Click the Settings icon next to the app and select Edit.
5. Replace the existing Consumer Key and Shared Secret with the new values generated in EchoVideo.
6. Click Submit to save the changes, as shown in the image above.

Confirm the Integration

After updating the credentials in Canvas:

1. Launch EchoVideo from a Canvas course.
2. Verify the integration loads successfully.
3. Confirm instructors and students can access EchoVideo content without errors.

The LTI 1.1 credentials between EchoVideo and Canvas have now been successfully rotated.
