EchoVideo supports any IP Camera that provides an RTSP stream (real-time streaming protocol) for use with any Pro, Pod, or Universal Capture: Classroom device. Adding an IP Camera configuration for your Institution will make it available as an input option for all UC-capable devices. Any IP camera configured for an Institution can be used in multiple rooms for maximum flexibility.

Note: When navigating to the IP Camera configuration page, only the configurations for the Institution you last logged into directly are displayed. Switching Institutions via your profile does not update the displayed configurations; you must log out, then log in directly to the desired Institution.

Add an IP Camera Configuration

1. Log in as an administrator.
2. Click the Settings icon in the upper-right corner of the screen.

3. From the Settings menu, select Institution Settings.

   General settings appears and Basic Info is selected by default.

4. On the left side of the Institution Settings page, select Configuration.
5. From the middle menu, click IP Camera.

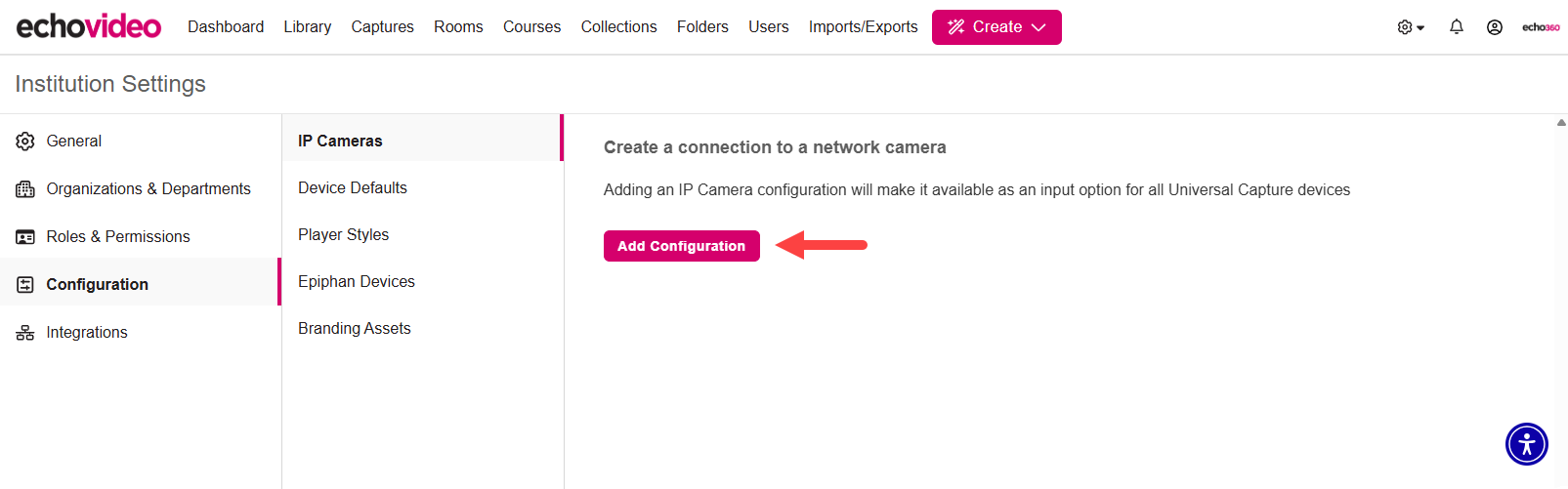

6. Click Add Configuration to start setting up your IP Camera.

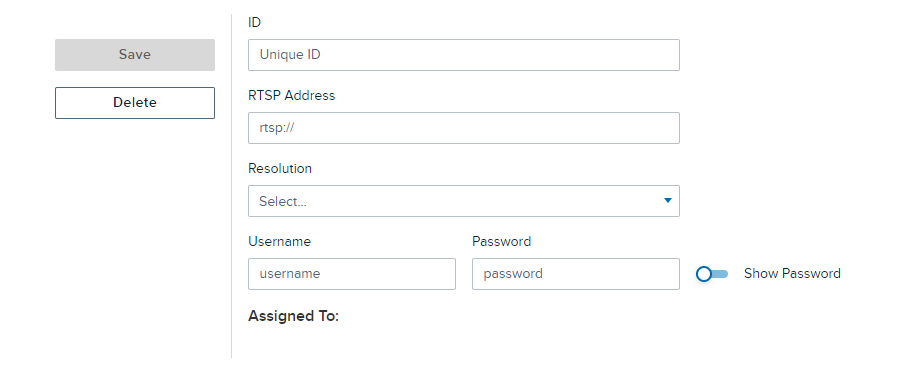

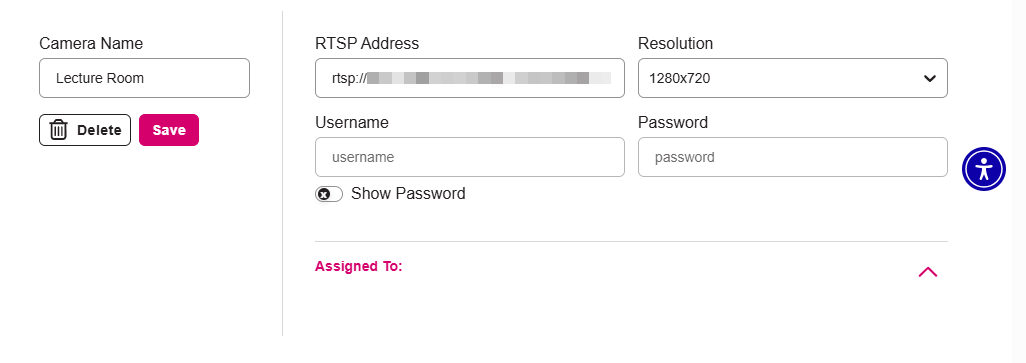

7. Enter a unique ID that is used to identify the camera on the Rooms configuration screen.
8. Enter the camera's RTSP address. This address is available with the camera utility.

9. Select the camera's default resolution.

   When configuring an IP Camera that will mainly be used in Rooms with a Pro or a Pod, make sure the resolution is set to 720p. This is the only resolution that is currently supported for IP Cameras with appliances.

10. Optionally enter a username and password.

11. Click Save.

Adding an additional IP camera is as easy as clicking on Add Configuration again. Click on Delete to remove an IP camera. Once an IP camera has been configured for use with your Institution, it can now be added to a Room.

Note that to delete an IP Camera configuration, the camera must first be removed from any room configuration, if applicable.

Add an IP Camera to a Room

Note the following limitations
-- For a Pro, IP Camera selection is limited to Channel 1. See Configuring Pro Input and Device Settings for more information.
-- For a Pod, IP Camera selection is limited to Channel 2. See Configuring Pod Input and Device Settings for more information.
-- For a UC: Classroom device, IP Camera selection is limited to Video input types. See Configuring UC: Classroom Input Devices for more information.

1. Navigate to the Rooms page.
2. Use the filtering drop-down lists and / or the Search text box to find the room that contains the Universal Capture device.

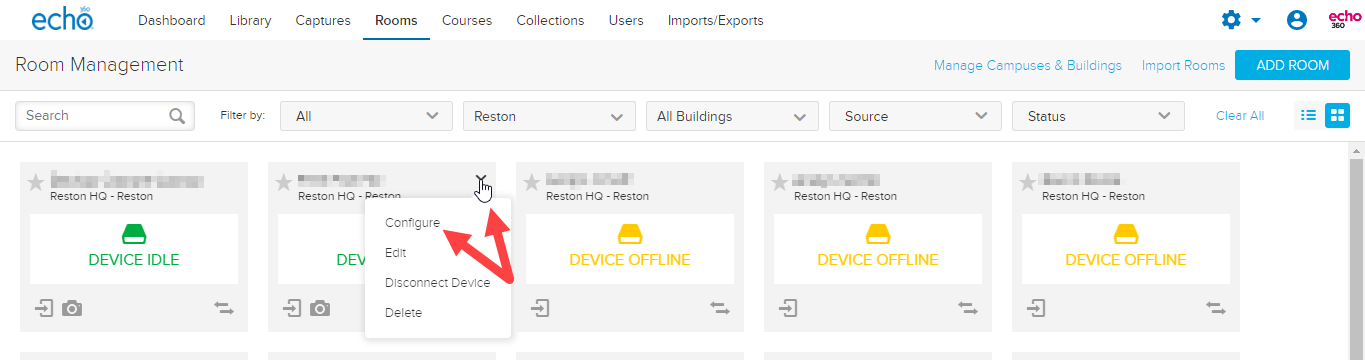

3. Hover your mouse over the Room tile to show the menu arrow in the top-right corner of the tile.

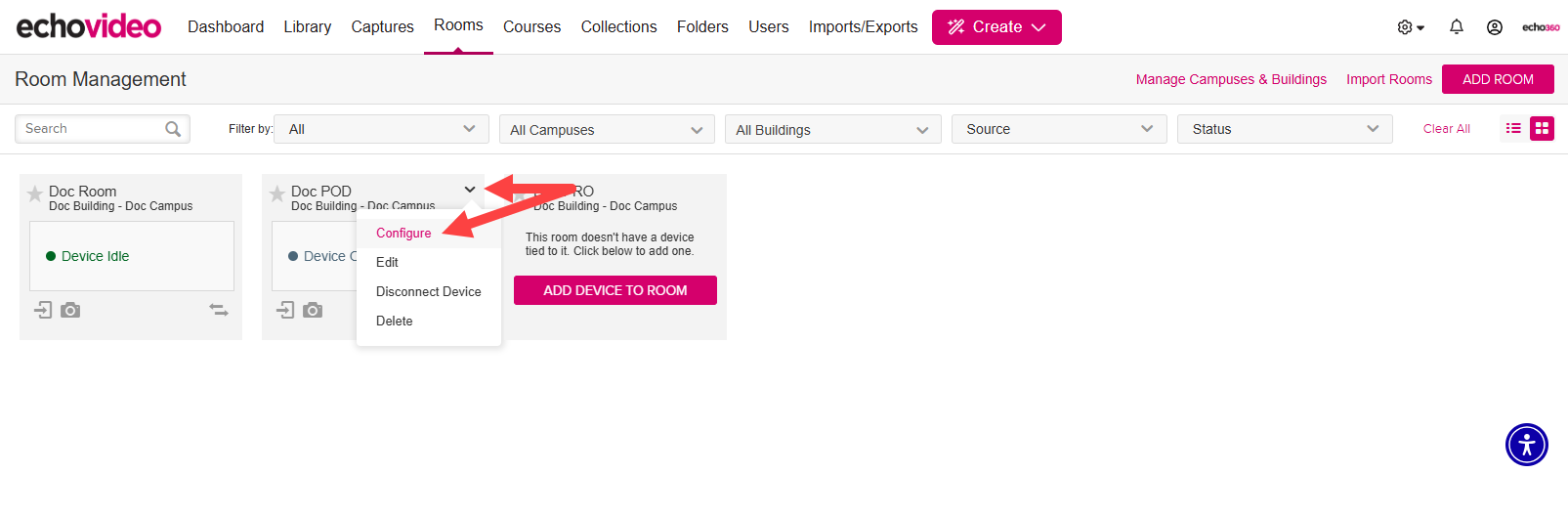

4. Click the menu arrow and select Configure.
   The Configure Room dialog box appears.

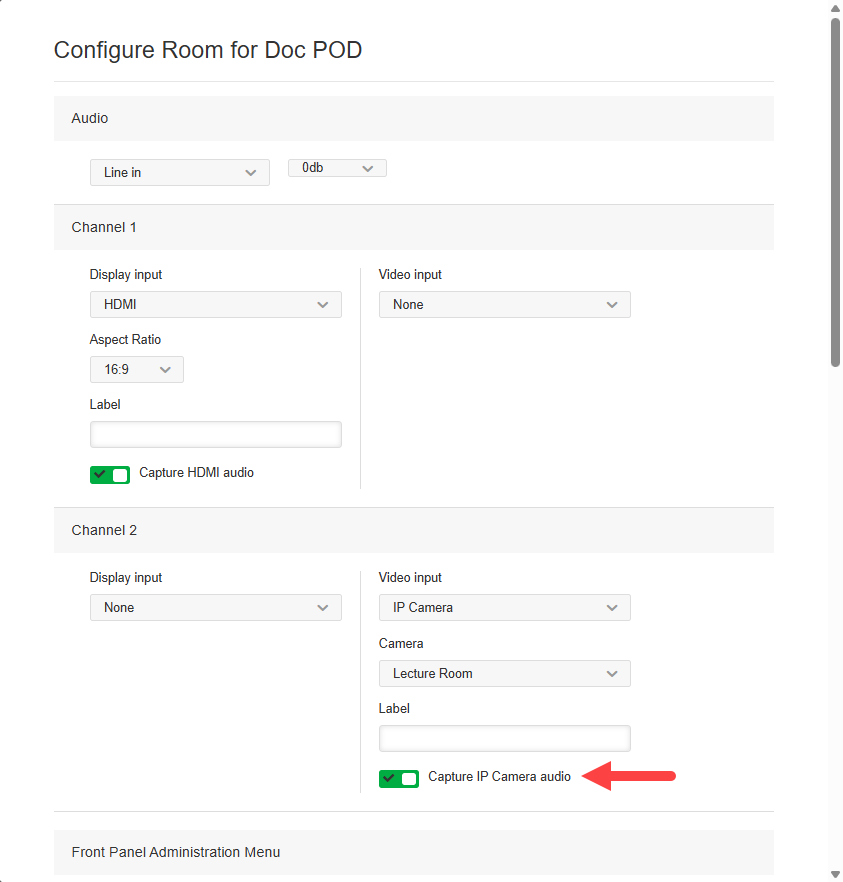

5. Select IP Camera as the Channel 2 input selection.

6. Then find and select the ID of the desired IP Camera for use in that Room.

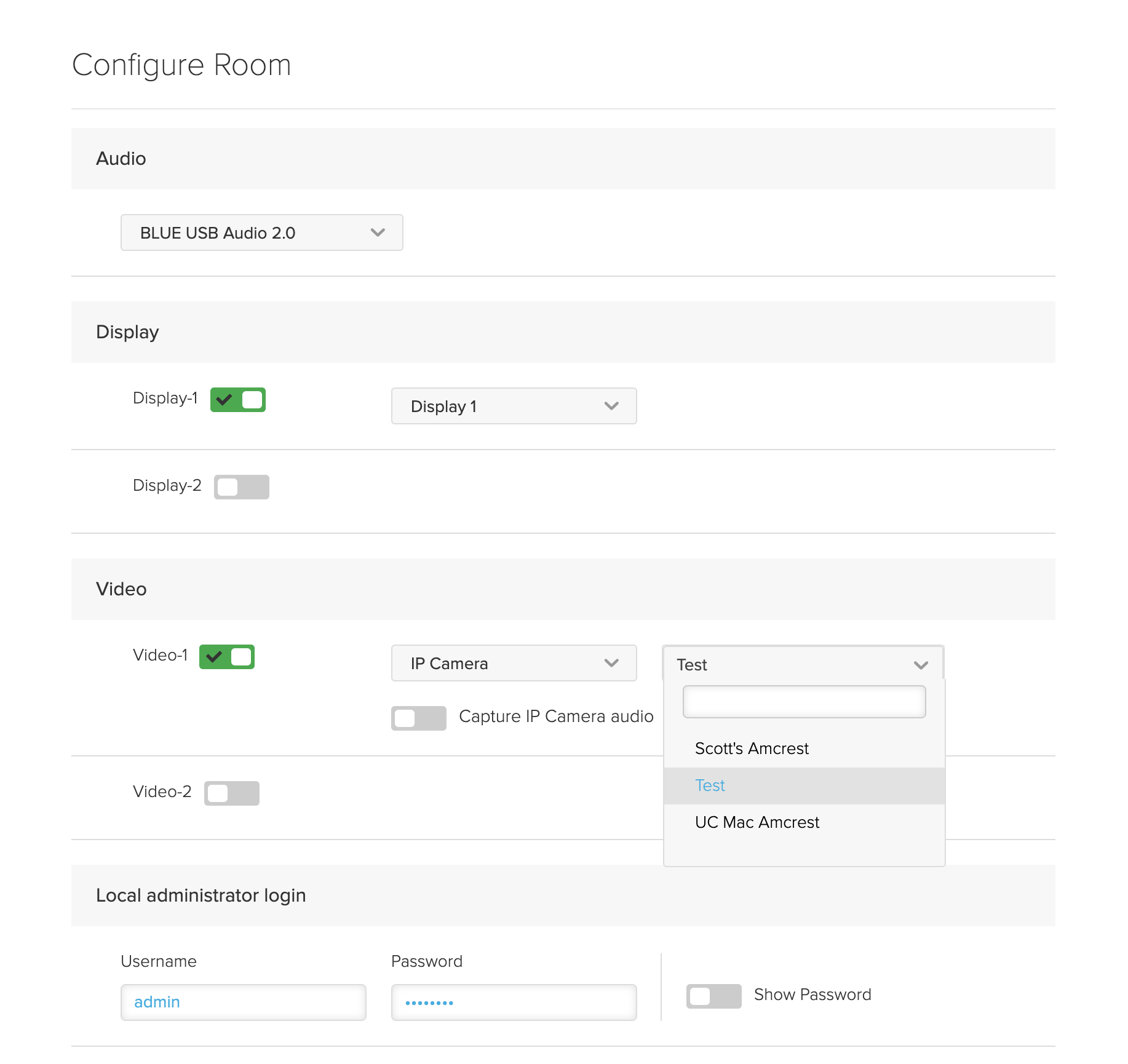

   You may optionally capture audio from the camera, as shown below on the UC: Classroom configuration page.



7. Click Save.
