EchoVideo: Add an External Learning Tool Provider to Brightspace

Echo360
  • Updated

The instructions below will add EchoVideo as an External Learning Tool at the Account / Organization level and make the link available to all descendants within the organization. This makes the tool available for any courses configured for the organization.

These procedures must be performed by a user who is an Administrator in both Brightspace AND EchoVideo.

BEST PRACTICE: Selecting and copying the values between EchoVideo and the LMS can be difficult and can be prone to selection errors. To select the full value of an LMS field, do the following:
1) Use your mouse to select a portion of the field values.
2) Press Ctrl + A / Command + A to select all of the field.
3) Press Ctrl + C / Command + C to copy the selected value.
4) Press Ctrl + V / Command + V to paste the value into the corresponding field in the LMS LTI External Tool configuration.​

The procedures below are provided as guidelines for the Brightspace tool configuration process. For additional details, refer to the Brightspace documentation or contact Brightspace product support.

To create the LMS Configuration values in EchoVideo

  1. Log into EchoVideo as an administrator.
  2. Click the Settings icon in the upper-right corner of the screen.
  3. From the Settings menu, select Institution Settings.

    General settings appears and Basic Info is selected by default.

  4. Click Integrations.
  5. From the middle panel, select LMS / VLE as shown in the figure below.

    LTI 1.3 is selected by default.

  6. Choose the LTI 1.1 tab.
  7. If you do not already have a Desire2Learn / Brightspace LMS Configuration, click Add Integration.

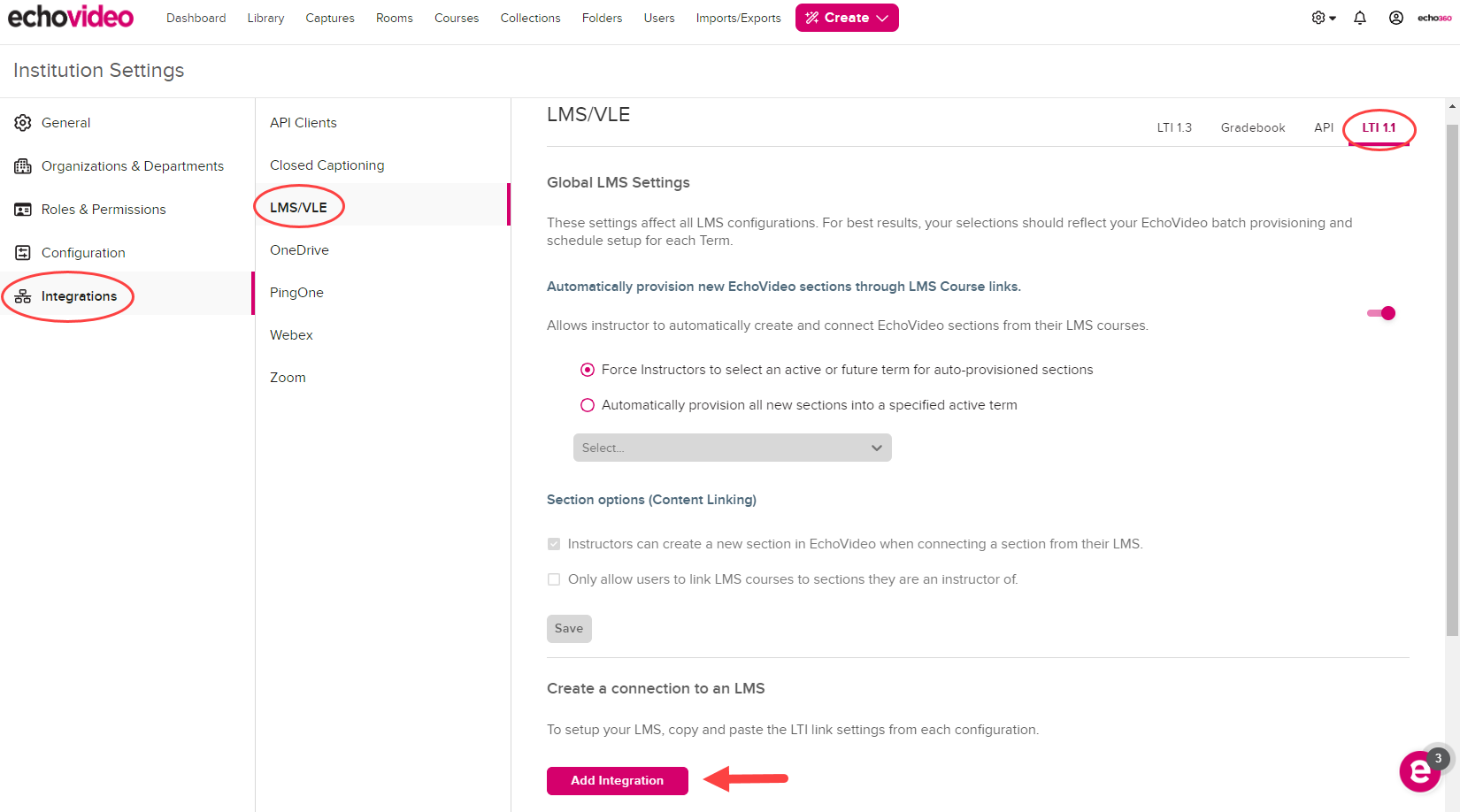

    LMS 1.1 LTI configurations page with Add Integration button identified
  8. Select Desire2Learn from the drop-down list.
  9. Click Save.

    The values generated in the Desire2Learn configuration are the values you will use in the External Learning Tool in Brightspace using the procedures below.

While Desire2Learn is available from the LMS drop-down list, you can edit the LMS Name in the textbox and click Save if you prefer your configuration read Brightspace.

To configure EchoVideo as an External Learning Tool in Brightspace

  1. Log into Brightspace as an administrator.
  2. Click the Settings icon in the top right corner (it looks like gears)
  3. In the Organization Related options, select External Learning Tools.

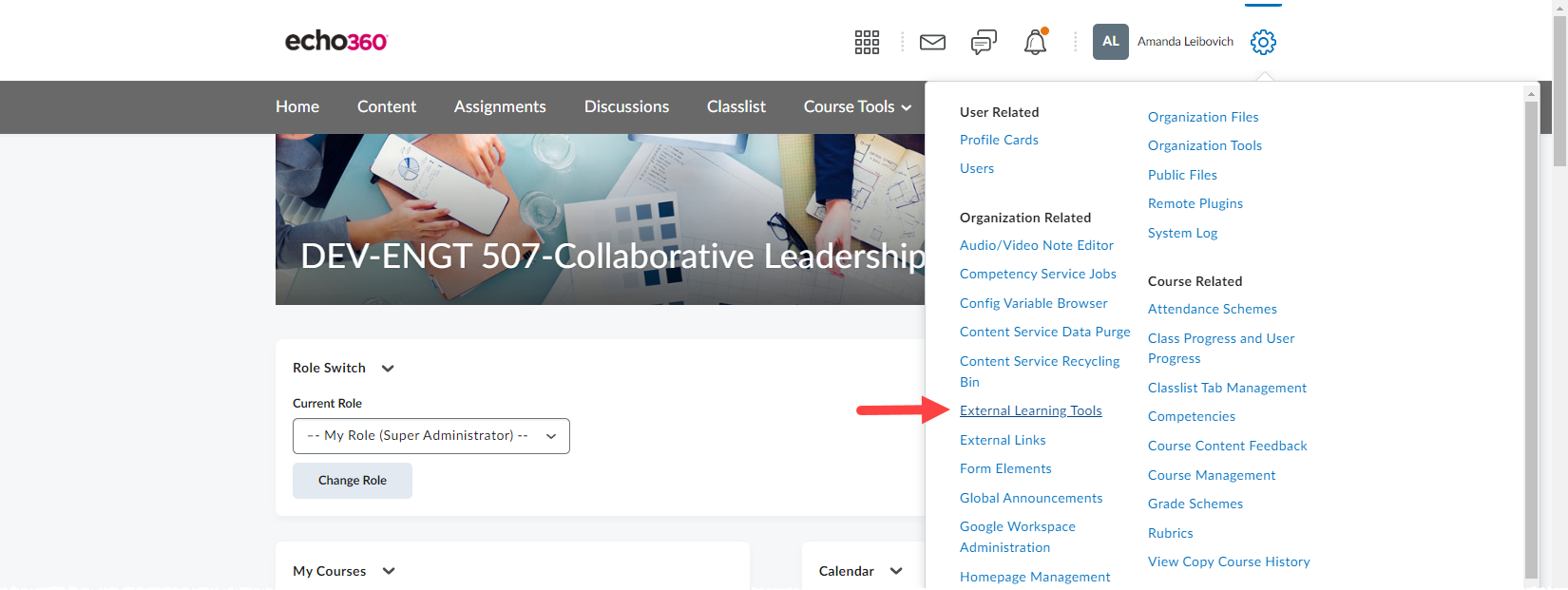

    Desire2Learn Admin settings options with External tool link identified as described
  4. Click the Manage Tool Providers tab, then click New Tool Provider as shown in the figure below.
    Bright Space External Learning Tool list with New Tool Provider button identified for steps as described
  5. In the New Tool Provider form, complete the fields in the top section as follows:
    • Launch Point - Copy and paste the Host URL value from the EchoVideo configuration fields.
    • Secret - Copy and paste the Shared Secret value from the EchoVideo configuration fields
    • Check the box for Use custom tool consumer information instead of default, as may be necessary to enable the Key, Name and Description fields.
    • Key - Copy and paste the Consumer Key value from the EchoVideo configuration fields.
    • Name - Enter a name that identifies this as a link to the EchoVideo institution where the linked sections and classes reside.
    • Description (optional but recommended) - Enter a description of this tool provider as the EchoVideo platform through which class and section media are provided.

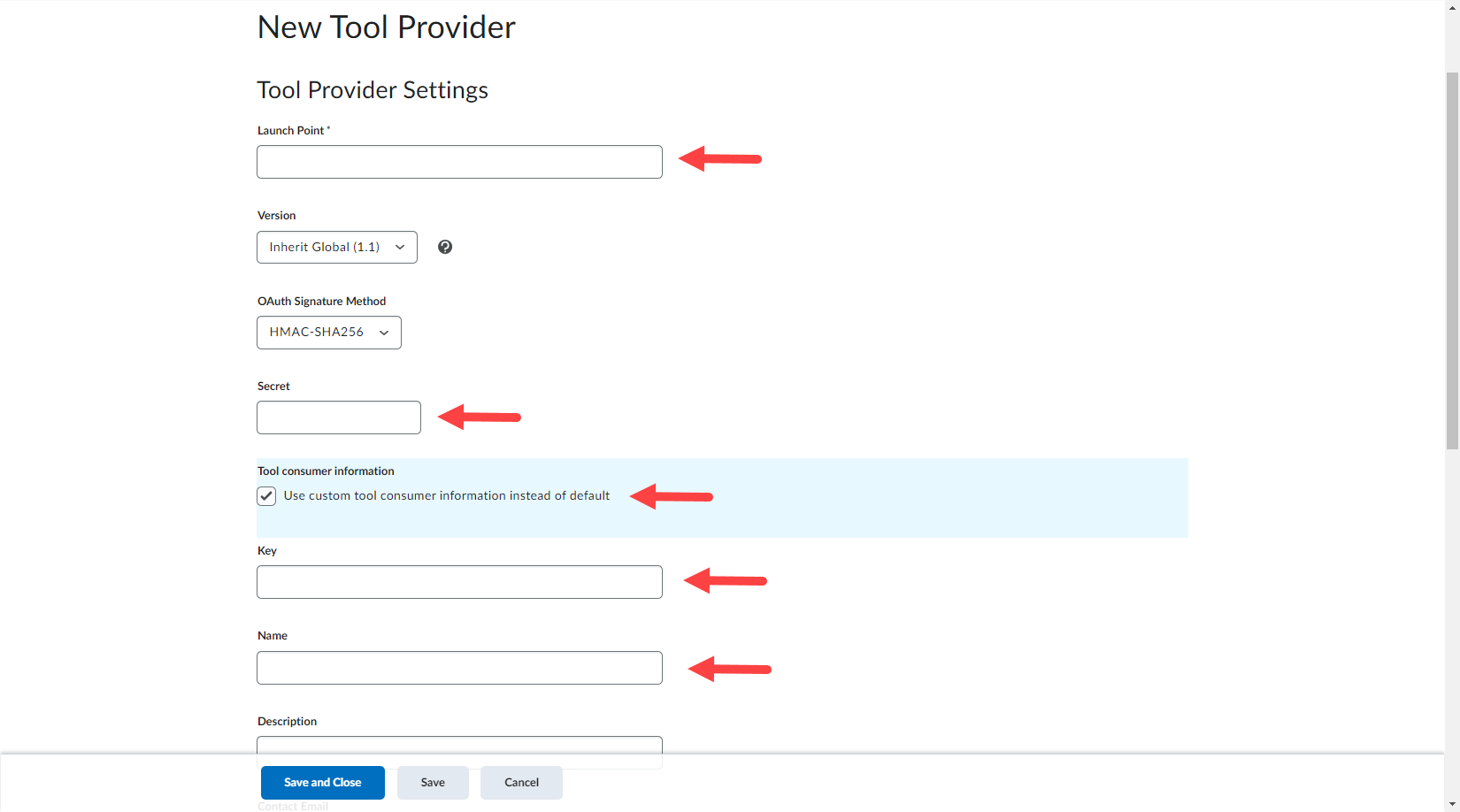

      Brightspace New Tool Provider form with required fields identified for steps as described
  6. Scroll down to the bottom of the form and enable the appropriate Visibility and Security Settings options.
    At a minimum, EchoVideo requires the user name, user email address, and role. Other selections may aid in the LTI communication required for future integration, so unless you have a specific reason not to, checking all of the options is recommended.

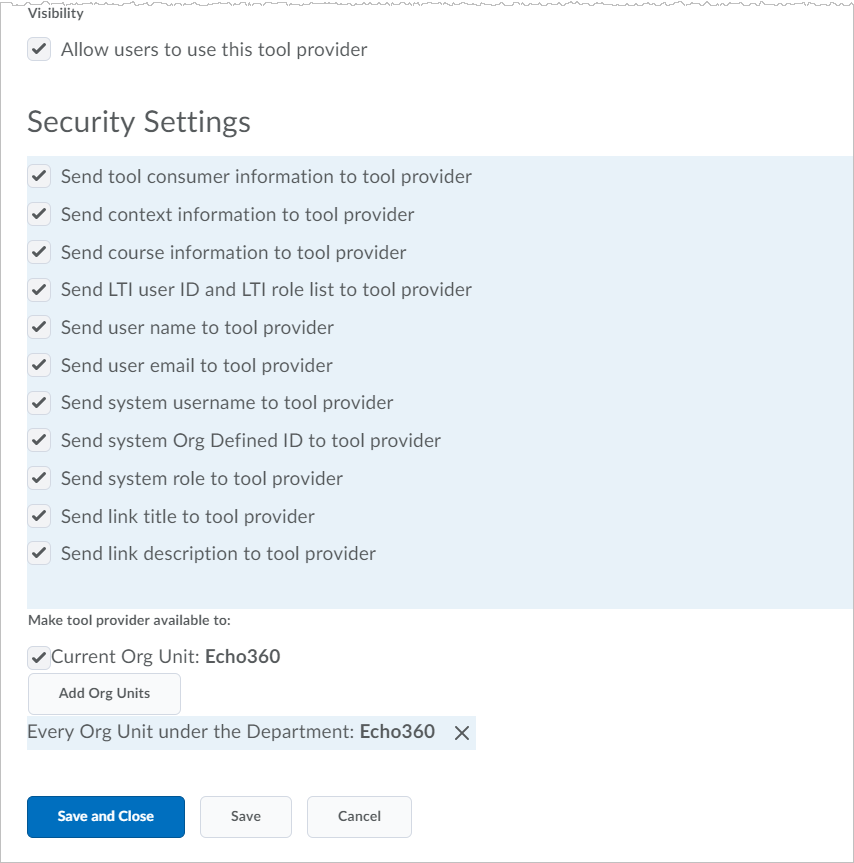

    Security Settings section of the New Tool Provider form with all options checked as recommended
  7. At the bottom of the form, click Add Org Units.
  8. Find the main Organizational unit (or the one to which you want to make this tool provider available).
  9. Check the box for the organizational unit, and select to make the link available for All descendants of the org unit, as shown in the figure below.
    This ensures the tool is available for all courses or other objects created within that organization / department.

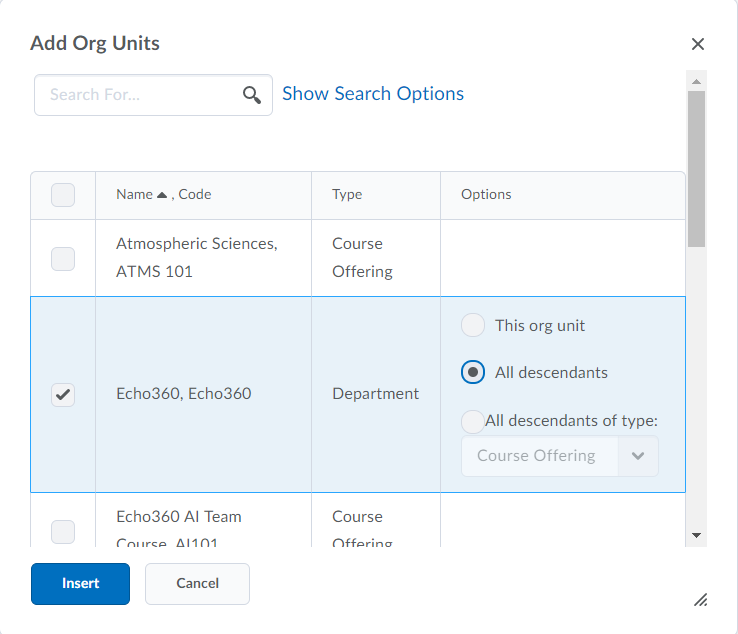

    Organizational unit list with Echo360 department enabled and All descendants option selected as described
  10. Click Insert to enter this change in the Tool Provider form. Repeat if you want to enable the tool for different organizations separately.
  11. When finished with the Tool Provider form, click Save and Close.

The new Tool Provider appears in the Manage Tool Providers list. It is now available for selection as an External Learning Tool for Brightspace courses, and allows admins or instructors to link their Brightspace courses to EchoVideo sections.
