Adding an Echo360 Button to the Moodle Content Editor Toolbar

Echo360
  • Updated

Upgrading the Echo360 Atto Plug-in: If you are using an older version of the plugin (before 1.0.17) you should upgrade to the newest version in order provide instructors with detailed viewing data for embedded media as well as the ability to embed interactive media (videos with polling questions embedded in them). As of this publishing, the newest version is 1.0.25.
See Upgrading the Echo360 Atto Plugin for instructions.

Echo360 provides an Atto plugin that once installed, generates an Echo360 button in the content editor for easy-access to embedding Echo360 media. This plugin allows users to embed media from their Echo360 library directly into a Moodle page or content window.

While you can install JUST the plugin to provide the "easy embed" button, installing the filter that accompanies the plugin allows students to submit Echo360 videos as assignment responses (or more accurately, allows instructors to view those videos within the assignment pages). Student media submitted as Assignment responses are locked down in Echo360 and cannot be edited or deleted by the student.

Administrators can use the Echo360 embed button to embed any media in the system to which they have access (visible in the Captures page of Echo360).

Content area of Page added to Moodle course with Echo embed video button identified

The LMS Configuration information (Key, Secret, and URL) can be the same as they are for the External Tool you may already have configured in Moodle for Echo360.

These procedures must be performed by the Moodle/Echo360 administrator. Please also note that the Moodle instructions below are provided as a guide; please refer to the Moodle documentation for further details if necessary.

To install the Echo360 Atto Plugin and Filter

  1. Log into Echo360 as an Administrator and navigate to  the Downloads page (Settings > Downloads).
    Echo360 admin settings menu open with navigation to downloads page identified for steps as described
  2. Scroll down to find the Moodle plugin entry on the page, then click Download for the Plugin, saving the .zip file to your local drive.
    Atto plugin download link identified on Echo360 downloads page for steps as described

    The Downloaded zip file contains two zip files within it; one for the plugin and one for the filter. These are shown in the below figure.

  3. EXTRACT the contents of the downloaded .zip file, and SAVE the two enclosed .zip files to a known location. Leave the extracted .zip files as they are. DO NOT extract the files from these sub-zip files. Moodle will do that for you.
    Downloaded Moodle zip file with two enclosed zip files shown as described
  4. Log into Moodle as an Admin and click Site Administration.
  5. Navigate to Plugins and select Install Plugins.
    Moodle plugins installation page with options for steps as described
  6. Click Choose a file and find the echo360attoplugin-###.zip file extracted from the download.
    You MUST install the atto plugin before installing the filter.
  7. When the zip file has been uploaded, click Install plugin from the ZIP file.
  8. Verify that the validation step shows no errors, and click Continue.

    If the installation fails, check any errors listed in the Validation log shown; you MUST have write permissions on the Plugins directory on the Moodle server. If the error indicates that you do not have these permissions, contact your System Administrator or another Moodle Administrator to obtain these permissions.

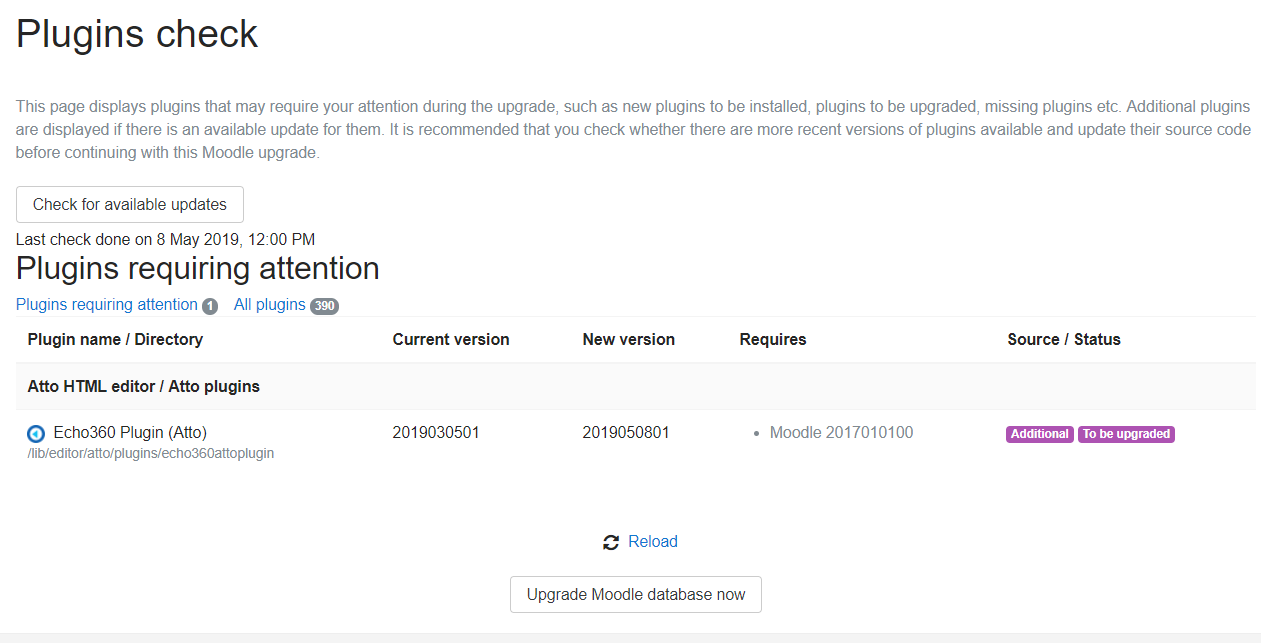

  9. On the Plugins check page, click Upgrade Moodle database now.
    Plugins check page after plugin upgrade for updating moodle database as described
  10. REPEAT the above installation steps but instead select the filter_echo360-###.zip file.

    The most common cause of failure to install the filter is due to a dependency the filter has on the atto plugin; you MUST install/upgrade the echo360attoplugin BEFORE trying to install or upgrade the filter.

  11. In the Plugins check page for the Filter, click Upgrade Moodle database now.
    Moodle plugins check page for filter installation with upgrade database button as described
  12. When the success message appears, click Continue.
  13. Navigate to Site Administration > Plugins > Filters > Manage filters.
  14. Find the Echo360 LTI Launch Filter and ensure that it is turned ON and that it is set to apply to Content, as shown below.

    IMPORTANT: You MAY need to increase the priority of the Echo360 filter in the list in order to embed videos in Moodle Labels.

    Moodle manage filters page with Echo360 LTI filter and settings identified
  15. If you are not prompted for LTI settings during the installation process, navigate to Site Administration > Plugins and scroll down to Text Editors
  16. From the Text Editors list, click Echo360 Plugin (Atto) Settings.

    In the below figure, the breadcrumbs are highlighted to help you navigate to the appropriate page.

    Settings page for the Echo360 plugin with LMS configuration value fields as described
  17. Open a new tab or browser window, and log into Echo360 as an Administrator.
  18. Select the Settings icon in the upper-right of the screen, then select Configurations.
  19. Click the Configurations tab on the right side of the LMS Configurations page, as identified in the below figure.
  20. Find your existing Moodle LMS configuration.
  21. Copy the Consumer Key, Shared Secret, and Host URL values from Echo360 into the Echo360 Atto plugin settings in Moodle.

    TIP: In Echo360, select some of each field then use Ctrl+A/Command+A to "select all" of the field, then Ctrl+C/Command+C to be sure to copy the whole field. In Moodle, place your cursor in the field and press Ctrl+V/Command+V to paste the value.

  22. Click Save changes.

If you are installing the Echo360 Plugin for the FIRST TIME, there is one more set of configuration procedures necessary. If you are upgrading, these steps should not be necessary, however if the Echo360 embed button does not appear for a content window, review the below steps to see if you need to make a change to the Atto plugin settings.

To complete Echo360 embed plugin and filter installation in Moodle

  1. In Moodle, navigate to Site Administration > Plugins.
    Moodle site administration and plugins navigation identified for steps as described

  2. Scroll down to the Text editors section and click on the Text editors link.
    Moodle plugins administration with Text Editors section and link identified
  3. In the Text editors list, make sure the Atto plugin is at the top. If it is not, use the up-arrow next to it to move it to the top.
    If you must change the order of the editors shown, you will be taken into the Manage Editors page; you will need to click Text Editors from the breadcrumbs links at the top to return to the Text Editors page and continue as described below.
  4. Below the Text Editors list, click Category: Atto HTML editor.
    Text Editors list with Atto HTML editor location identified and editor configuration link identified
  5. Scroll down the list of plugins to find the Echo360 plugin, shown in the below figure, then highlight and copy the plugin name (Ctrl+c or Command+c).
    Atto plugins list with Echo360 plugin name identified as described
  6. Scroll farther down the page to the Toolbar config section, then scroll to the bottom of the config list to find Other.
  7. Paste the Echo360 plugin name (Ctrl+v or Command+v) into the Other value in the Toolbar config list (adding it to whatever is already there). Alternately you can type in the name of the plugin which should be echo360attoplugin.
    Atto Plugin toolbar config values with Echo360 plugin name added to Other as described
  8. Scroll down farther on the page to the Collapse toolbar settings section, and increase the Show first (n) groups when collapsed value to ensure the Echo360 button will appear by default for all users. The below figure shows this value set to 20, which is the maximum.
    Collapse toolbar settings with show first groups setting set to 20 as described
  9. Scroll to the bottom of the page and click Save changes.

The Content window toolbar should now provide the Echo360 button for embedding media. Users can embed any media they own. Administrators can embed any media they have access to in the system.
